LFP40135 Rechargeable Cell Manufacturer

IFR40135 Rechargeable Cell

LFP（LiFePO₄）3.2V Lithium-ion Batteries

EASTAR – Your Trusted Battery Partner from China!
1. 20+ Years of Export Experience, Trusted by Global Clients
2. ISO, CE, RoHS, MSDS Certified
3. Strong R&D Team for Customized Battery Solutions
⚡ Reliable Quality 🔋 Low MOQ 🤝 B2B Focused
💡 OEM/ODM Support

Product Details

Tailored Solutions for Your Business

OEM/ODM Support: Custom branding, packaging.
Bulk Pricing: Volume discounts for orders over 10,000 units.
Certifications: Compliant with RoHS, CE standards.
Samples: Request free samples to test compatibility.
Fast Turnaround: 25-day production lead time for large orders.
Global Shipping: DDP/DAP options with reliable logistics partners.

Specifications Table

Model	Nominal Voltage (V)	Nominal Capacity (Ah)	Energy (Wh)	Rated Charge Current (mA)	Rated Discharge Current (mA)	Max Discharge Current (mA)	Charging Voltage (V)	Discharge Voltage (V)	Internal Resistance (mΩ)	Max Diameter (mm)	Max Height (mm)	Approx. Weight (g)
40135	3.2	18	57.6	9000	18000	18000	3.65	2	8	46.15	80.13	335
40135	3.2	20	64	10000	20000	20000	3.65	2	8	40.15	135.2	370

Features

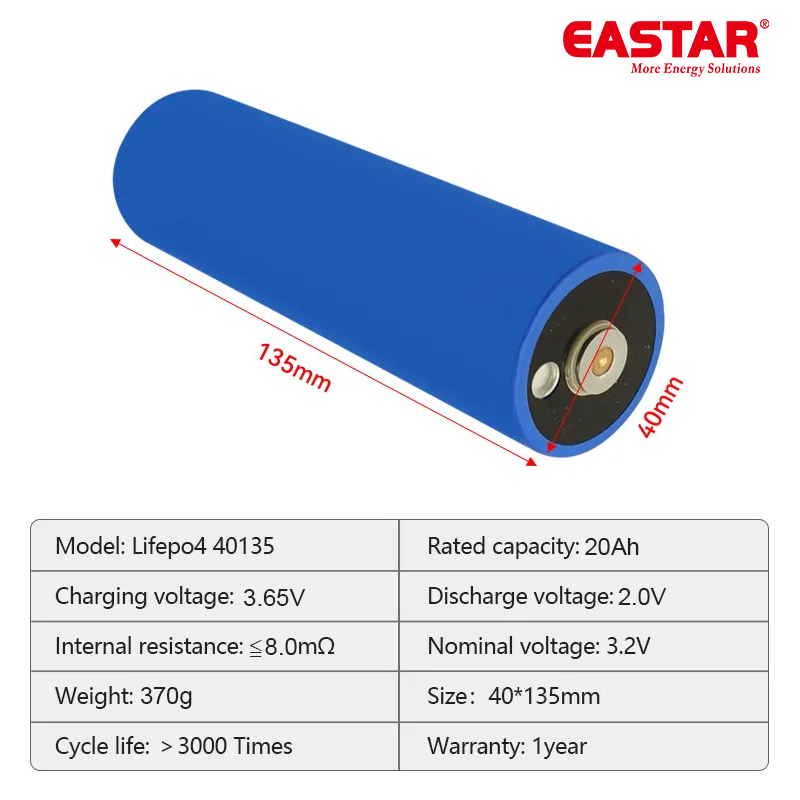

· Standard 40135 Size

40.15mm diameter × 135.15mm height
· Voltage

3.2V
· High Capacity Options

18000-20000mah
· Support High Current Discharge

1C–2C
· Long Cycle Life

2000–4000 cycles
· Wide Temperature Range

-20 ~ 60°C
· Features

Super long life, good thermal stability
· Certified Safety and Compliance

Complies with UL1642, IEC62133, UN38.3, MSDS, ROHS, etc.
