1.2V 2200mAh NiMH Rechargeable Battery | 1S2P Sub-C Custom NiMH Cell Pack

Product Details

Product Name: 1.2V 2200mAh NiMH Rechargeable Battery
Configuration: 1S2P (2 x 1100mAh cells in parallel)
Nominal Voltage: 1.2V
Nominal Capacity: 2200mAh
Chemistry: Nickel Metal Hydride (NiMH)
Rechargeable: Yes
Standard Charge Current: 220mA (0.1C)
Fast Charge Current: 660mA (0.3C), with temperature detection
Cycle Life: 500–1000 cycles
Self-discharge: Low self-discharge rate
Operating Temperature:

Charge: 0°C to 45°C
Discharge: -20°C to 60°C
Dimensions: Customizable depending on cell type
Cell Size: Sub-C / AA / customized options available
Connector & Wire: Customizable (e.g. JST, Tamiya, no connector, etc.)

Applications:

Solar garden lights
Emergency lighting
Flashlights
Cordless phones or devices
Toys and portable tools
Custom battery modules

Features:

Stable voltage and long cycle life
Environmentally friendly and safe
High discharge capability
Fully customizable configuration
Complies with RoHS, MSDS, UN38.3 upon request
OEM / ODM services available

Features

· Customized Voltage & Capacity Options

Tailor-made battery packs with flexible voltage and capacity configurations to meet your exact project requirements.
· Safe and Stable Chemistry

NiMH batteries offer high thermal stability, no risk of explosion, and are safer than lithium in many low-power applications.
· Wide Temperature Range Operation

Performs reliably in environments from -20°C to 60°C, ideal for outdoor or industrial use.
· Long Cycle Life

Up to 500–1000 charge-discharge cycles, providing excellent long-term value and sustainability.
· Environmentally Friendly

Contains no toxic heavy metals like cadmium or lead; RoHS and REACH compliant.

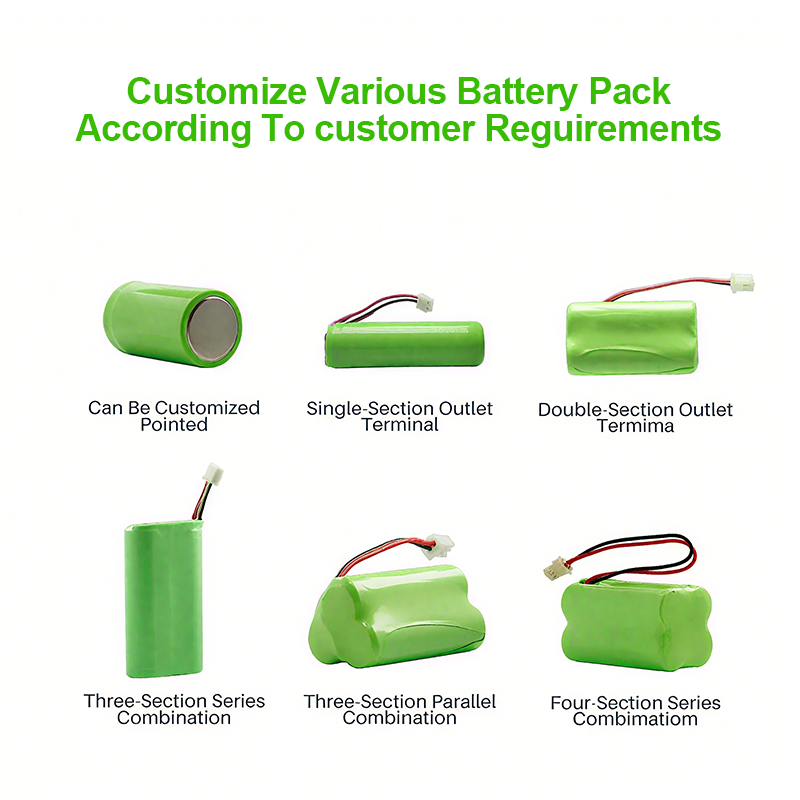

· Flexible Form Factors

Can be built in various shapes and sizes — flat packs, brick packs, cylindrical layouts — to fit limited spaces.
· Multiple Connector & Wire Options

Fully customizable connectors (Tamiya, JST, Molex, etc.), wire lengths, heat shrink colors, and labeling.
· OEM/ODM Support Available

Professional engineering support for B2B customization, from prototype to mass production. Full technical documentation provided.
