3.6V 800mAh NiMH Battery Pack | 3S1P Rechargeable Ni-MH Cell for Portable Devices

Product Details

Product Name: 3.6V 800mAh NiMH Rechargeable Battery Pack
Configuration: 3S1P (3 x 1.2V cells in series)
Nominal Voltage: 3.6V
Nominal Capacity: 800mAh
Energy: 2.88Wh
Chemistry: Nickel Metal Hydride (NiMH)
Rechargeable: Yes
Cycle Life: 500–1000 cycles
Charging Method: Standard or fast charge with temperature detection

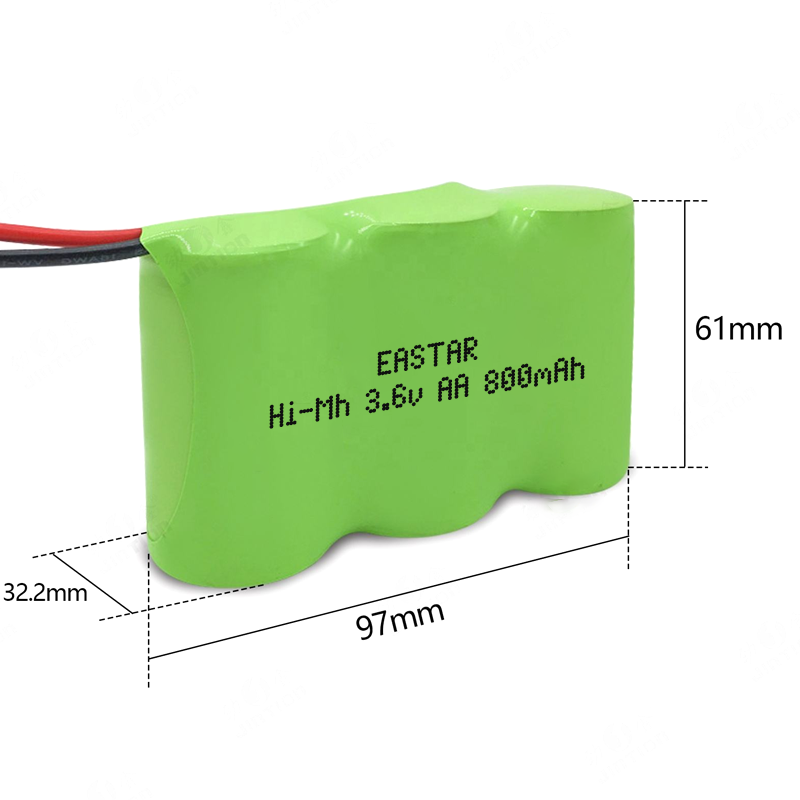

Cell Size: AAA / 2/3AA / custom available
Dimensions: Customizable
Connector: Optional (Molex, JST, Tamiya, etc.)
PVC Color: Green / Black / Custom
Operating Temperature:

Charge: 0°C to 45°C
Discharge: -20°C to 60°C
Storage Temperature: -20°C to 35°C
Certifications: RoHS, UN38.3, MSDS available upon request

Applications:

Medical devices
Wireless headphones

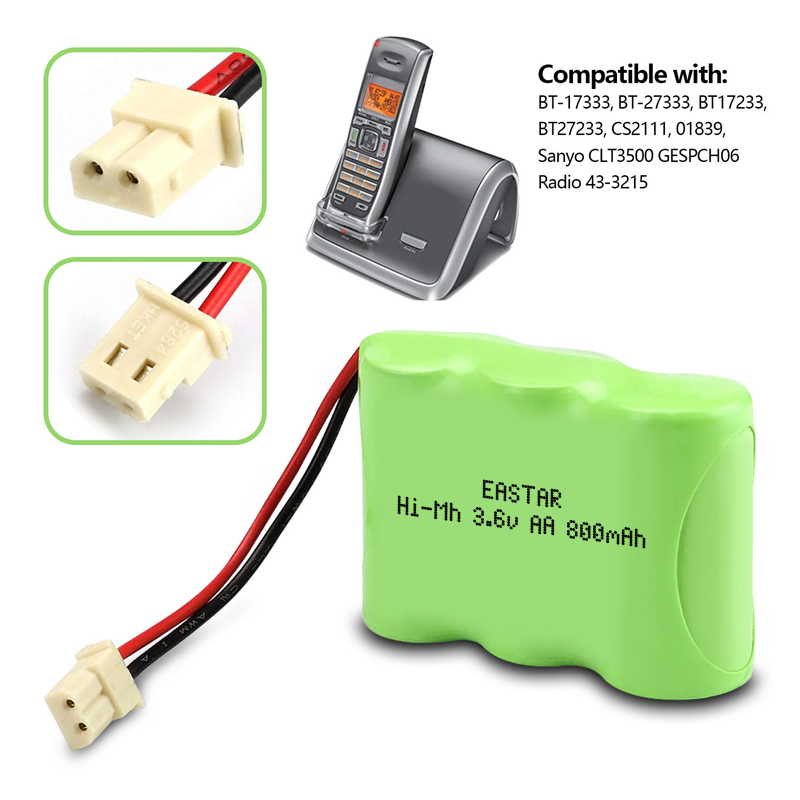

Cordless phones
Emergency lighting systems
Electronic toys
Personal care products (e.g., shavers, toothbrushes)
Custom portable devices

Features:

Safe and stable chemistry with no memory effect
Lightweight and compact design

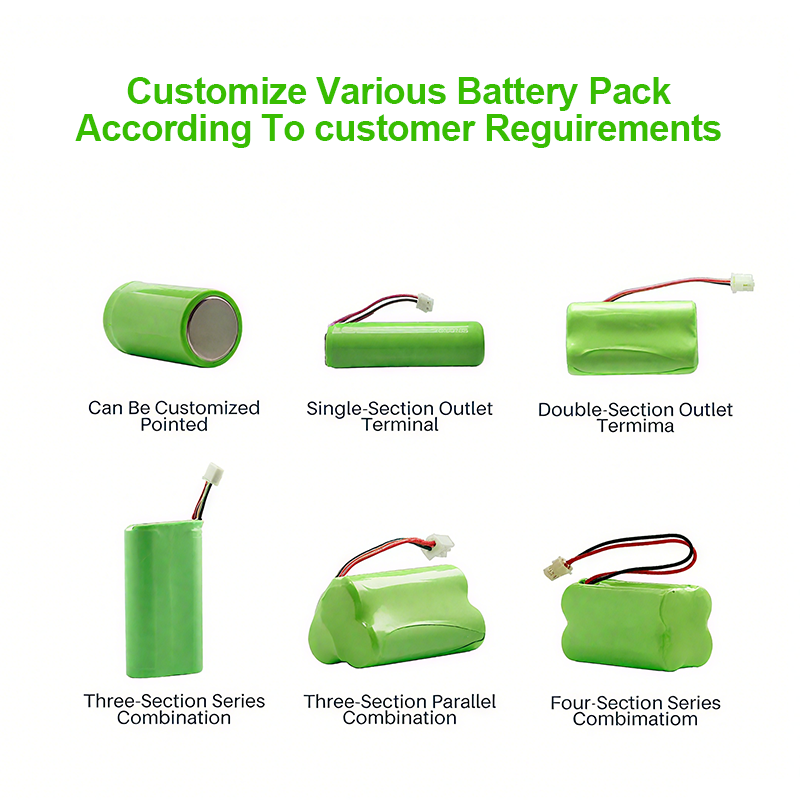

Custom wire, connector, size and label available

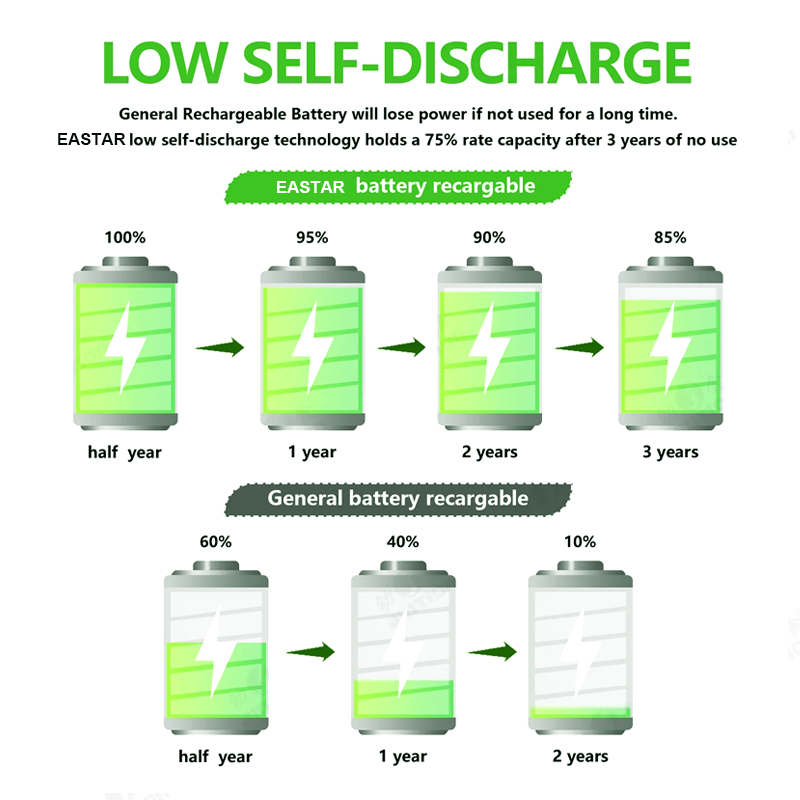

Consistent performance with low self-discharge
Environmentally friendly and RoHS compliant
OEM/ODM service with full technical support

Features

· Customized Voltage & Capacity Options

Tailor-made battery packs with flexible voltage and capacity configurations to meet your exact project requirements.
· Safe and Stable Chemistry

NiMH batteries offer high thermal stability, no risk of explosion, and are safer than lithium in many low-power applications.
· Wide Temperature Range Operation

Performs reliably in environments from -20°C to 60°C, ideal for outdoor or industrial use.
· Long Cycle Life

Up to 500–1000 charge-discharge cycles, providing excellent long-term value and sustainability.
· Environmentally Friendly

Contains no toxic heavy metals like cadmium or lead; RoHS and REACH compliant.
· Flexible Form Factors

Can be built in various shapes and sizes — flat packs, brick packs, cylindrical layouts — to fit limited spaces.
· Multiple Connector & Wire Options

· Multiple Connector & Wire Options
· OEM/ODM Support Available

Professional engineering support for B2B customization, from prototype to mass production. Full technical documentation provided.
